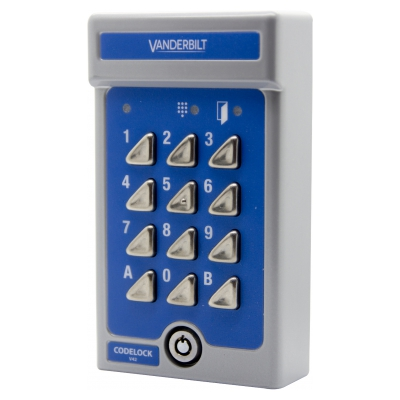

Vanderbilt V42 (K42) Keypad

Formerly Known as the Bewator or Siemens K42 – Identical product



Simple compact Codelock with two code combinations, internal or external use. Stainless steel vandal resistant keys. Surface mount, back-lit keypad.

Technical Data



• Housing – Cast metal with Stainless Steel buttons and security lock.
• Colour – Grey
• Environment – Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
• IP Rating – 54
• Temperature – minus 35 to plus 55 °C
• Voltage – 12 to 24 V AC/DC
• Current – 8 mA in standby.
• Dimensions – 80 (W) x 140 (H) x 40 (D) mm
• Door Capacity – 1
• Code capacity – Two of four digits
• Inputs – Exit button requests with delay. Two separate for codes disable.
• Outputs – Voltage free relay contact, max 1A, 28 V DC.
• Opening time – 1-30 sec.
