V42 (K42) Keypad Complete With A PSU

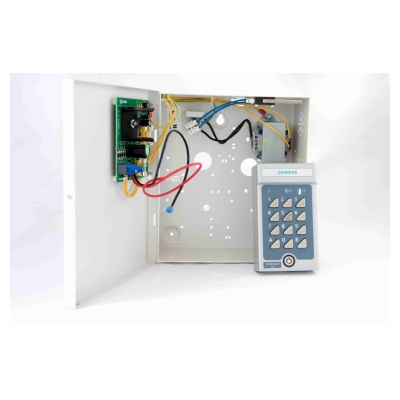

This is a kit containing a V42 (K42) Keypad and a 230vac to 12vdc 1amp Power Supply Unit

Simple, compact codelock with modern design for outdoor montage. If the correct code is given the opening relay is activated on the chosen time.

Technical Data for V42 Keypad

• Housing – Cast metal with Stainless Steel buttons and security lock.
• Colour – Grey
• Environment – Indoor or outdoor use (IP54 design). In very exposed         locations, use SH2 or SH1 rain cover.
• IP Rating – 54
• Temperature – minus 35 to plus 55 °C
• Voltage – 12 to 24 V AC/DC
• Current – 8 mA in standby.
• Dimensions – 80 (W) x 140 (H) x 40 (D) mm
• Door Capacity – 1
• Code capacity – Two of four digits
• Inputs – Exit button requests with delay. Two separate for codes disable.
• Outputs – Voltage free relay contact, max 1A, 28 V DC.
• Opening time – 1-30 sec.
