SRS Door Phone, 2 Button, White

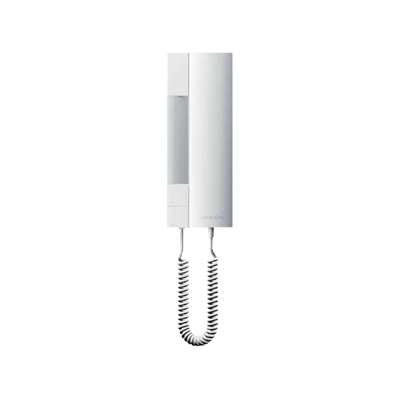

SRS AV1407-SRS Audio handset, traditional wiring (4+n)

The AV1407-SRS handset is built from ABS plastic and is the direct replacement for the older AN9102S model. Hardware wise, this handset is compatible with SRS systems that have been installed since the year 2000.

The only other difference between the old and new model except its look is that this handset is tone call only whereas the AN9102S had tone and buzzer call. Therefore, if you require buzzer call (for very old systems), please order part RZ102 in addition to this handset.

Features:

• Additional service button

Technical data:

• Made from white ABS plastic
• Compatible with 4+n analogue system



If using this handset in place of an SRS ET100 the connections are:



AN9102S                              ET100

C7                           =             25

1                              =             3

2                              =             2

9                              =             4

6                              =             1
