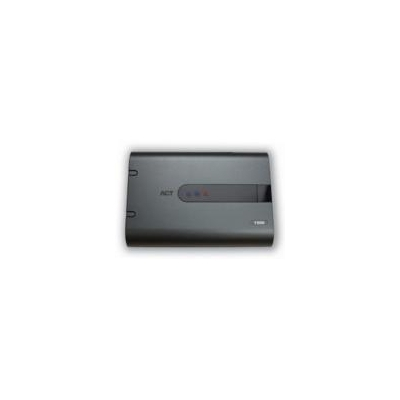

Single Door IP Controller

The ACTpro 1500 is a single door IP controller expandable up to 32-doors via ACTpro door stations and supports 15,000 users . It can be set-up and administered via its built-in web server or through the established ACTWin software application. Key features include voltage monitoring, break glass monitoring, status LEDs for fault indication and cable management improvements such as a raised PCB and more space in the enclosure.

Features

• If using more than one 1500 controller ACTWin software is required
• 15,000 users (2 credentials per user) and 250 User Groups
• ACTpro 1500 is a single door IP controller which can be expanded to 32 doors with ACTpro 100e door stations.
• Controls up to 32 doors
• ACTpro 1500 Controller is not interoperable with other ACTpro controllers.
• ACTpro 1500 controller includes a web server which allows installers and users to manage installations without requiring ACTWin software.



Current	250mA
Input Voltage	12V DC
Monitored	Yes
Operating Temparature	-10°C to +50°C
Tamper Protection	Yes
Brand	ACT
Manufacturer Reference	ACTpro 1500
Depth	55mm
Height	165mm
Weight	455g
Width	236mm
