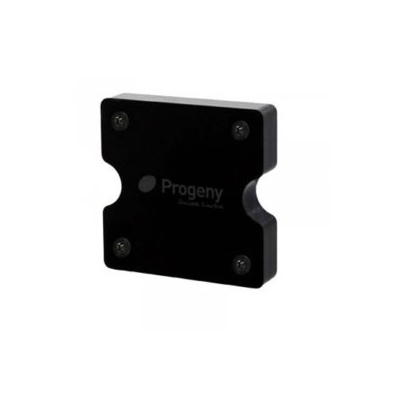

Progeny Dark Crystal Panel Mount Reader

The Dark Crystal Reader from Progeny is a passive RFID (Radio Frequency Identification) reader for use with the Progeny P4 systems.



The proximity credential is encoded with an encrypted identification number. This number is transmitted when presented to the Dark Crystal reader. The reader then passes this number on to the control equipment for an access control decision.



The Dark Crystal reader is weather protected and suitable for both indoor and outdoor use.



The PR04820 (Panel Mount) is IP65 rated when sealed against front panel.



The panel mount reader fits into reserve side and intercom panels using standard fittings and is an ideal solution for tenanted buildings using integrated access control and intercom.



Features

• IP65 rated when sealed against front panel



Technical Data

• Voltage:0-14V DC
• Peak Current: 10mA
• Average Current: 50mA
• Frequency: 125Khz
• Cable Distance (Max.): 100m
• Operating Temperature: -20 to 65¡C
• Operating Humidity: 0 to 95%

Dimensions

• 60 x 60 x 17 (hwd mm)
