4 Way Bellissimo Surface Colour Video Entry Kit

Product Description

This Bellissimo range video entry is ideal for controlling access to residential homes, blocks of flats and commercial premises. The kit comes complete with a four way surface mount entrance panel manufactured from 3 mm brushed anodised aluminium. This panel includes a colour camera with a built-in high intensity infrared lamp which illuminates the caller in low light conditions. The call buttons include a nameplate window with a name card insert for displaying flat name or number.

The video telephone allows the resident to view a caller at the entrance, speak with them and control their access. This contemporary Bellissimo video monitor has a high resolution 3.5 inch TFT display with three soft-touch backlit silicone rubber push buttons. The video monitor is wall-mounted directly without additional mounting brackets or connectors. An internal plastic moulding protects the video display and electronics during installation.

Please note: Tradesmen entry facility is available for the entrance panel, but you must calculate it as one extra button and add model TRBS to your order.



Features

• System generally connected with standard CAT5 cables
• 3.5inch flat screen high resolution LCD colour display
• Ringer mute function and volume control
• Timed outputs for fail-safe and fail-secure lock release devices
• One videophone per call button and up to three extension videophones (more with additional power supplies)

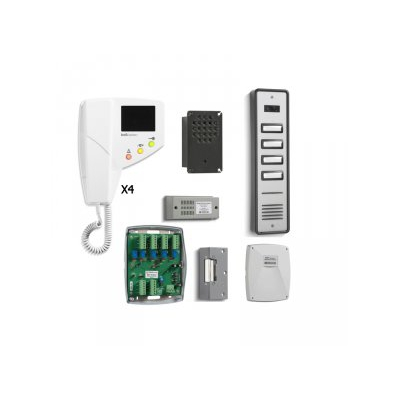

This kit includes

• 1 x 4 Way surface colour video entry panel (Model BSP4)
• 4 x Bellissimo video monitors (Model BS)
• 1 x Telephone controller, one for every 4 telephones (Model BSC4)
• 1 x Door controller (Model BSD8)
• 1 x Speech unit (Model 61)
• 1 x Power supply (Model PS4)
• 1 x Surface lock release (Model 203)
• full wiring and installation manual

Product Attributes

Brand

Bell (BSTL)



System Type

Video (colour)



Call Buttons

4 call buttons



No of Entrance Panels

1 entrance panel



Panel Mounting

Surface mount



Panel Finish

Aluminium finish



Cabling

Bell (BSTL) Video CAT5



Phone Type

With Handset
